Visualisations

Interactive tools for exploring hazardous-area classification and explosion protection concepts. Click, filter, and learn by doing.

Zone Classification โ€” Plant Explorer

Explore a fuel-storage and loading terminal with eight hazardous-area regions classified per IEC 60079-10-1 (gas) and IEC 60079-10-2 (dust). Click any numbered region to see how the zone is determined and what it demands of the equipment installed there.

IECEx Certificate Statistics

Data from the official IECEx Online Certificate System (OCS), covering all equipment Certificates of Conformity (CoC) issued under the IECEx Certified Equipment Scheme since its inception. Updated May 2026.

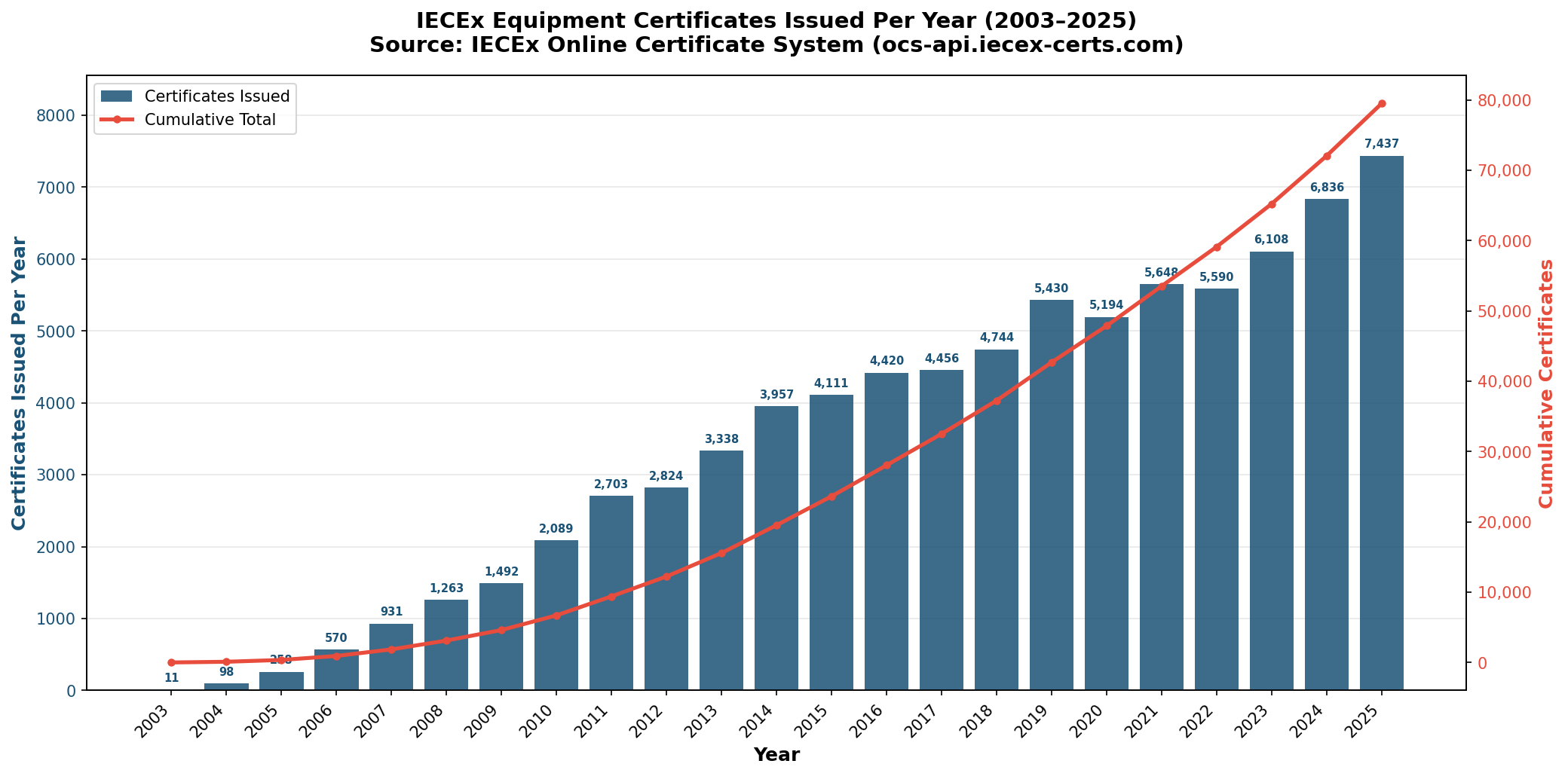

Certificates Issued Per Year (2003โ€“2025)

IECEx certification has grown steadily since 2003, with over 79,500 equipment certificates issued to date. The 2020 dip reflects COVID-19 disruption to testing and manufacturing, followed by a strong recovery. 2025 is on track to be the highest year on record.

IECEx equipment certificates issued per year from 2003 to 2025, showing steady growth from 11 certificates in 2003 to over 7,400 in 2025

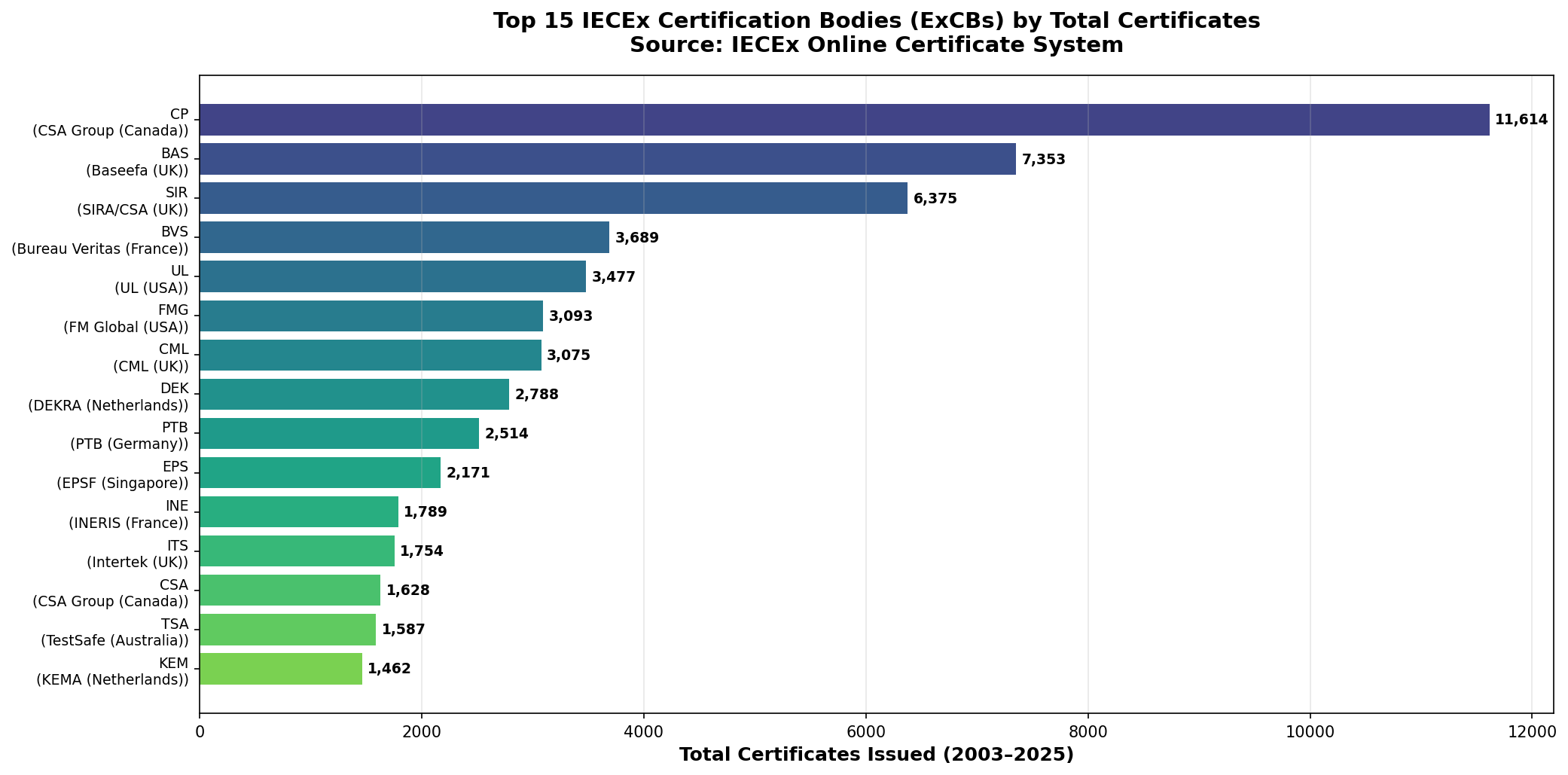

Top 15 Certification Bodies (ExCBs)

85 ExCBs worldwide are approved to issue IECEx certificates. The top 5 alone account for roughly 40% of all certificates issued. CSA Group (code: CP) leads with over 11,600 certificates, followed by Baseefa (UK), SIRA/CSA (UK), Bureau Veritas (France), and UL (USA).

Top 15 IECEx Certification Bodies ranked by total certificates issued, led by CSA Group with over 11,600 certificates

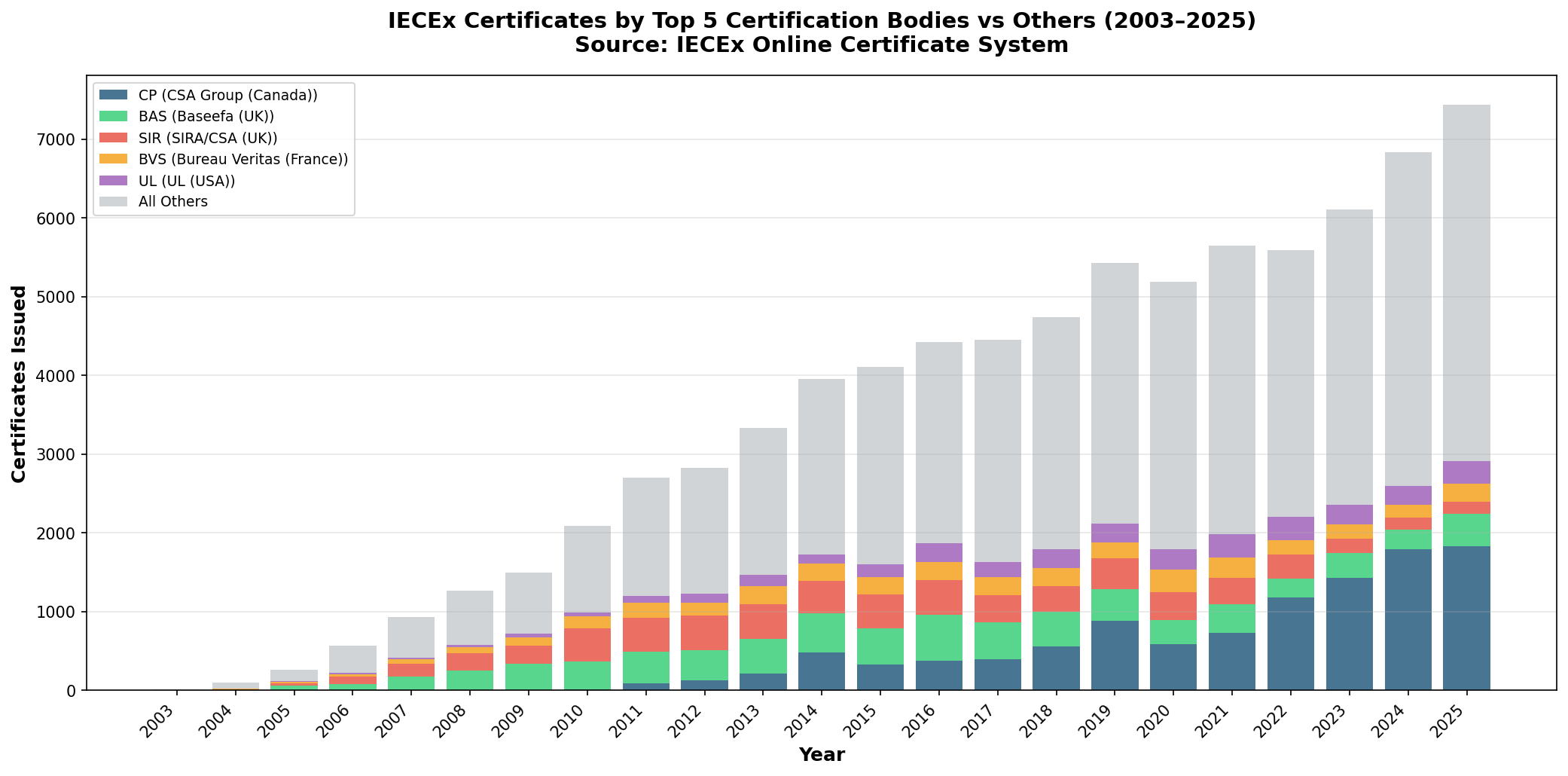

Market Share Over Time โ€” Top 5 ExCBs

The certification market has become increasingly distributed over time. While the top 5 ExCBs dominated early years, smaller and regional certification bodies have grown their share significantly since 2015.

Stacked bar chart showing IECEx certificates by top 5 certification bodies versus all others from 2003 to 2025

Sources & Methodology

  • Data source: IECEx Online Certificate System (OCS) โ€” the official public database operated by the IEC.
  • API endpoint: ocs-api.iecex-certs.com/v1 โ€” queried May 2026.
  • Scope: Equipment Certificates of Conformity (CoC) only. Test Reports (ExTR) and Quality Assessment Reports (QAR) are excluded.
  • Certificate counts reflect all issues (including reissues/renewals). Status breakdown: 72,262 current, 7,879 cancelled, 1,400 expired, 403 suspended.
  • ExCB list: IECEx Certified Equipment Scheme โ€” Contact a Certification Body
  • Years 2014โ€“2015 may be slightly undercounted due to API pagination limits (5,000 results per query).

More coming

Additional interactive visualisations covering protection methods, equipment selection, and marking interpretation are in development.
